SSO Setup in Salesforce

Streamline the SSO setup in Salesforce with this comprehensive setup guide from miniOrange. Our Salesforce SSO configuration using SAML Single Sign-On (SSO) enables seamless login to various Salesforce channels and applications using a unified set of credentials.

By enabling SSO in Salesforce, users can securely access Salesforce with just one click, eliminating the need to re-enter their username and password. Simplify your Salesforce authentication process and enhance security with miniOrange's user-friendly SSO solution.

With miniOrange Salesforce SSO, you can:

Enable your users to automatically log in to Salesforce.
Maintain centralized and easy access control for all users through your Salesforce single sign-on setup.
Connect easily with any external identity source like Microsoft Entra ID, Azure Active Directory, ADFS, Cognito, and more.

Salesforce also works as an IDP. With miniOrange Salesforce SSO solution, you can extend the single sign-on to downstream apps like WooCommerce, Shopify, WordPress, JIRA, and Confluence, and manage the full user lifecycle without extra Salesforce licenses.

Get Free Installation Help

miniOrange offers free help through a consultation call with our System Engineers to Install or Setup Salesforce SSO solution in your environment with 30-day free trial.

For this, you need to just send us an email at idpsupport@xecurify.com to book a slot and we'll help you in no time.

Supported SSO Features

miniOrange-Salesforce SAML integration supports the following Salesforce SSO configuration features:

SP Initiated SSO Login: Users can access their Salesforce account via a URL or bookmark. They will automatically be redirected to the miniOrange portal for login. Once they've signed on, they'll be automatically redirected and logged into Salesforce.
IdP Initiated SSO Login: Users need to log in to the miniOrange first, and then click on the Salesforce icon on the applications dashboard to access Salesforce. (If you have set up any more Identity Sources, you will log in to that platform.)
JIT Provisioning: Enables the automatic creation of user accounts in Salesforce when a person logs in for the first time via Desktop SSO, IDP, or Active Directory (AD) authentication.
Single Logout: With this feature, you will be automatically logged out of all the Salesforce applications that are connected with the Identity Provider (IdP) when you log out of the Salesforce org or any other app.
Mandate users to Login using SSO: Single Sign-On can make it mandatory for all Salesforce users to log in using SSO. This will prevent any person from logging in using any other source and bypassing the login system. No person will be able to have direct login, making it a streamlined and secure process.
MFA and User Provisioning: Secure Salesforce logins with 29+ MFA methods while automatically creating, updating, or removing user accounts based on your identity provider data. Manage authentication and user lifecycle from one place.
Any Salesforce Object Support: Authenticate users from Salesforce Contacts, Leads, Accounts, or Custom Objects as identity sources. This gives you the flexibility to use your existing Salesforce data to manage login without additional setup.
Attribute and Role Mapping: Map Salesforce user fields to SAML or OpenID Connect attributes to assign roles and permissions in connected applications. This keeps access control consistent across every app your team uses.

Connect with External Source of Users

miniOrange provides user authentication from various external sources, which can be Directories (like ADFS, Microsoft Active Directory, OpenLDAP, AWS etc), Identity Providers (like Microsoft Entra ID, Okta, AWS), and many more. You can configure your existing directory/user store or add users in miniOrange.

Prerequisites

The following Subscription plans are required for the mentioned authentication methods:
1. Federated Authentication: All Editions
2. Delegated Authentication Professional, Enterprise, Performance, Unlimited, Developer, and How you integrate Editions.
3. Authentication Providers: Professional, Enterprise, Performance, Unlimited, and Developer Editions.
Note - In order to do SP initiated SSO into Salesforce, you need to create a custom Domain. Check this link - Salesforce domain changes and follow the below steps:

Salesforce Lightening
Salesforce Classic

Login to your Salesforce account.

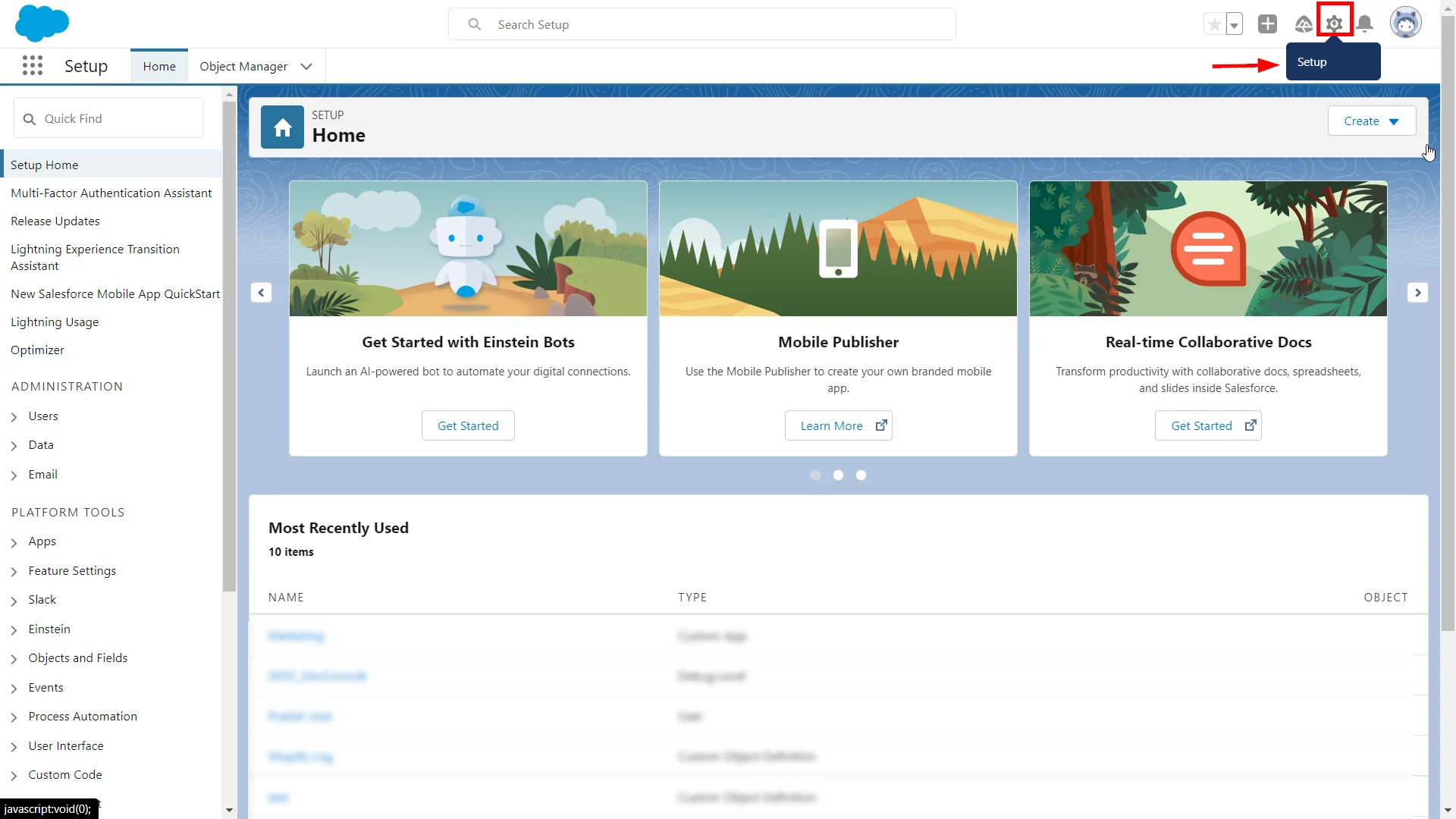

Click on the Setup icon in the top-right section of the Salesforce lightening dashboard page.

Salesforce SSO : Salesforce Admin Dashboard- Setup

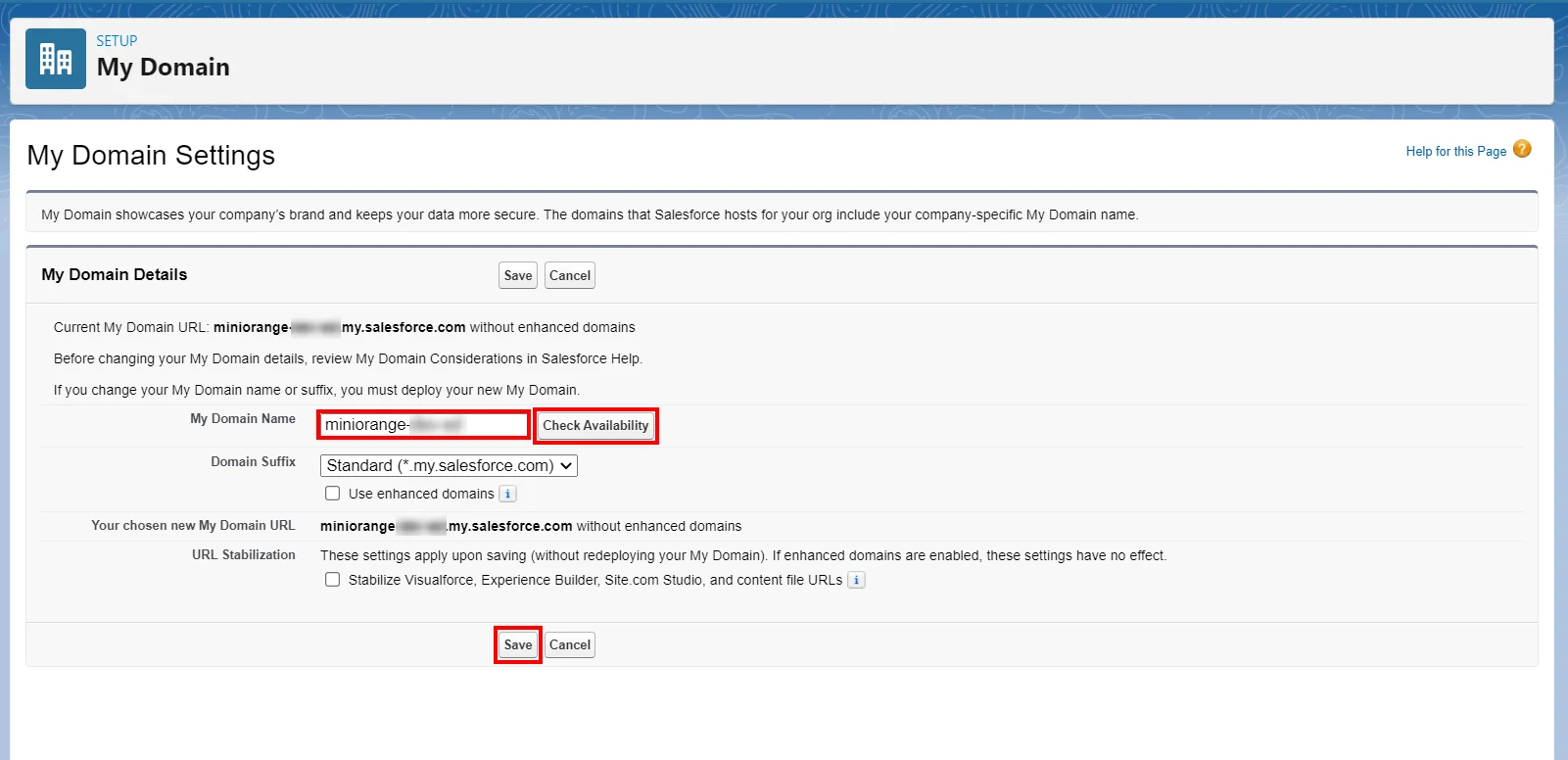

Now in the search field, search for the My Domain Settings.
Choose your domain name, check for availability and if available, proceed by saving the settings.

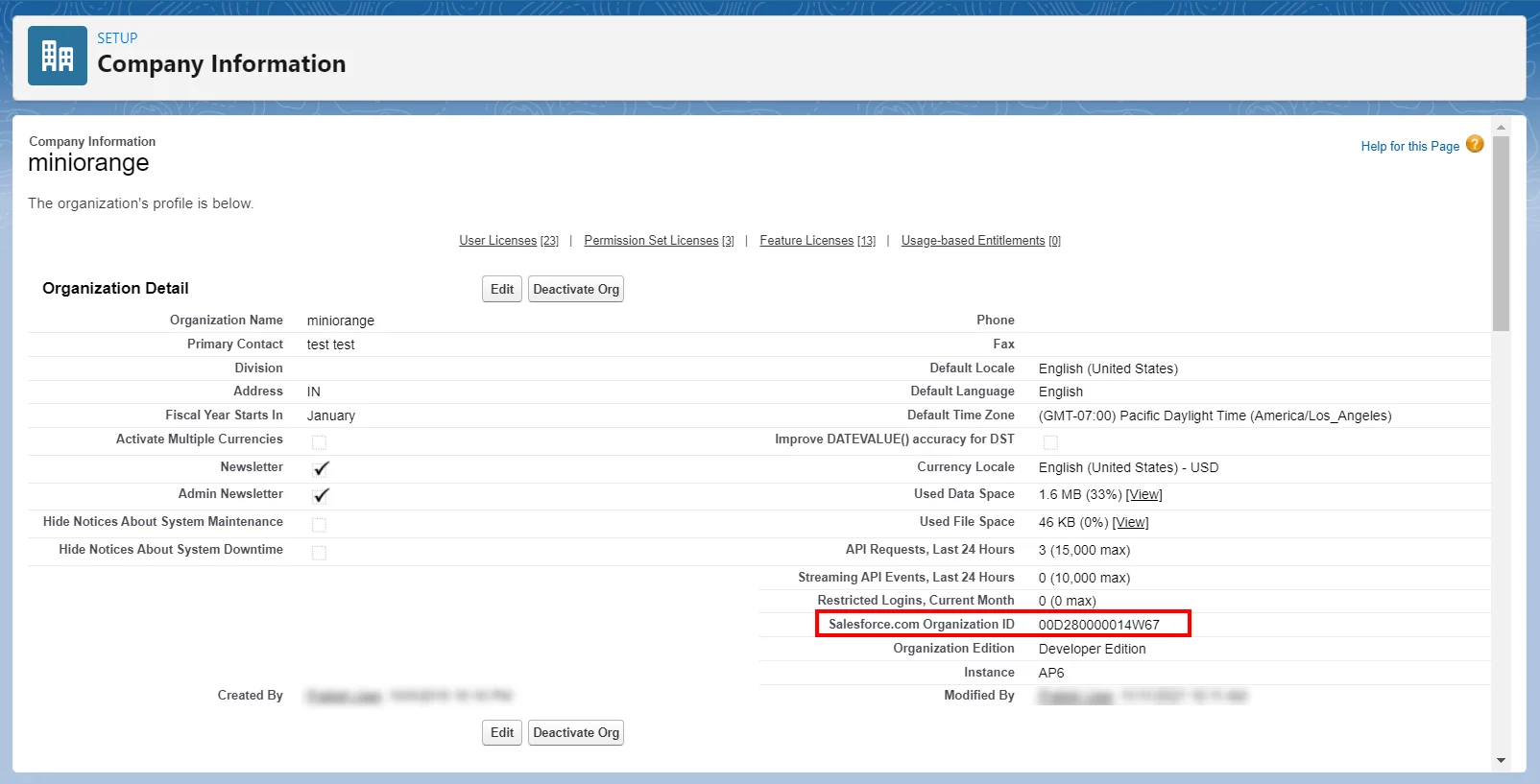

Search for Company Information in the search bar.
Copy the Organization Id. (This will be required later)

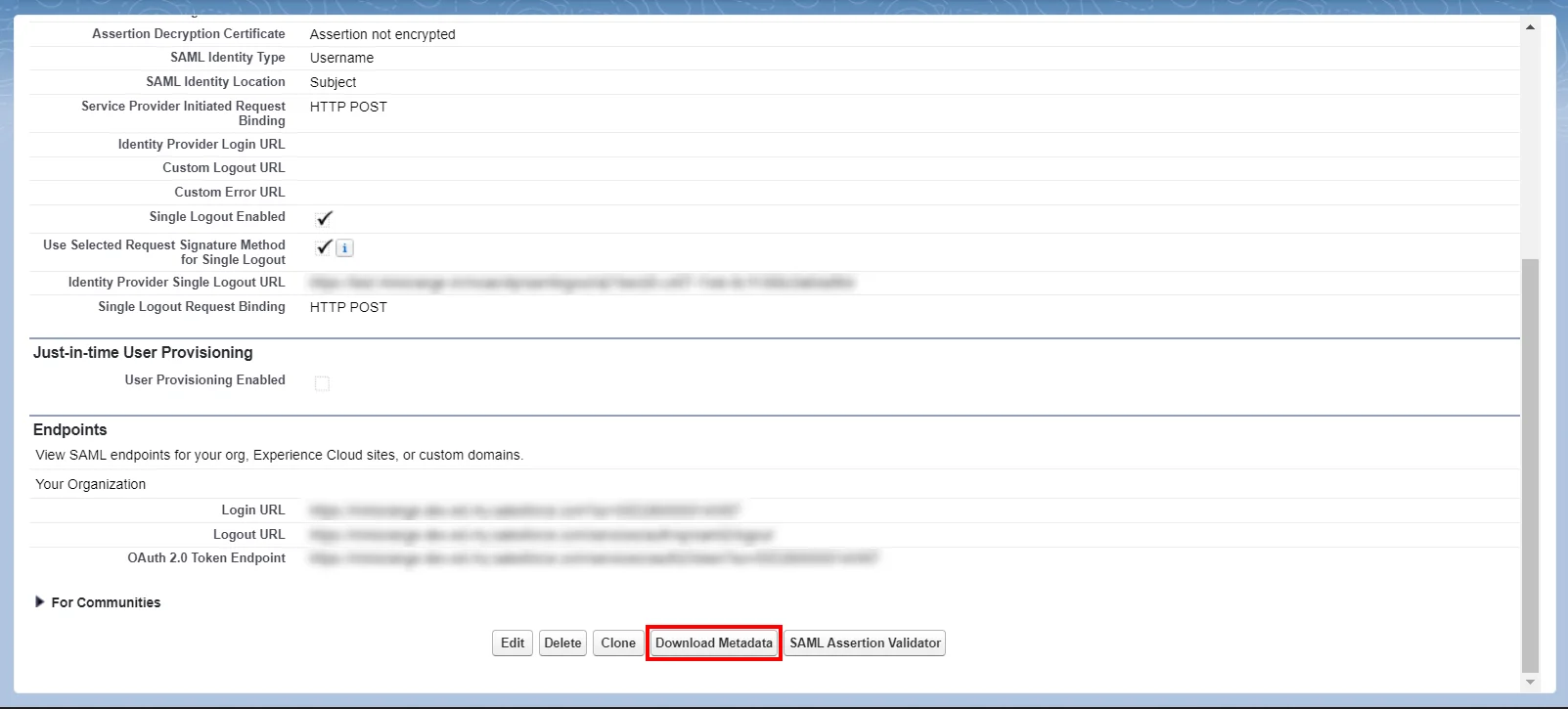

Salesforce Metadata: After you have set up the SSO settings in Salesforce Admin Dashboard, you will get the Salesforce Metadata File. Click Download Metadata to download an XML file of your SAML configuration settings to send to your identity provider. The identity provider can then upload these configuration settings to connect to your Experience Cloud site.

Salesforce SSO : Download Salesforce Metadata

Login to your Salesforce account.

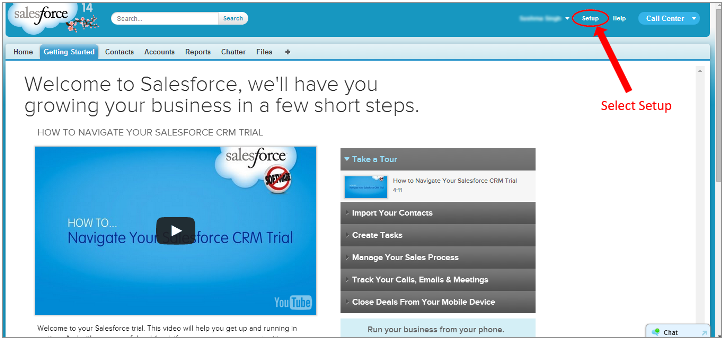

Go to Setup in the top-right section of the Salesforce classic dashboard page.

Now in the left pane, select Domain Management.
Select My Domain.
Choose your domain name, check for availability and if available, proceed by clicking the Register Domain button.

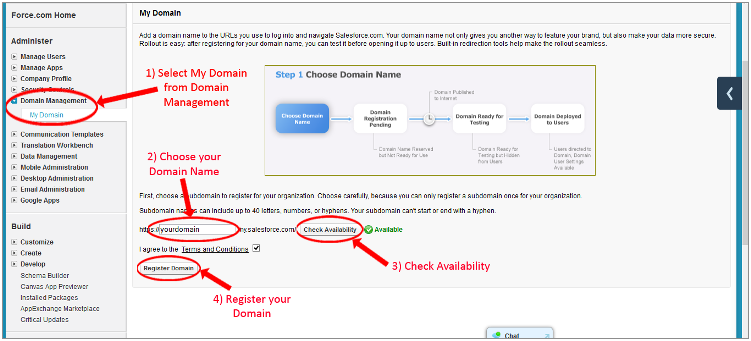

Salesforce Single Sign-On (sso) Register domain

Test your domain once it is ready, by clicking the link and then click Deploy to Users.
Search for Company Information in the search bar.
Copy Organization Id. (This will be required later)

Salesforce Single Sign-On (sso) copy organization id

Follow the step-by-step guide given below for Salesforce Single Sign-On (SSO)

1. Configure Salesforce in miniOrange

Login into miniOrange Admin Console.
Go to Apps and click on Add Application button.

In Choose Application Type, select SAML/WS-FED from the All Apps dropdown.

Salesforce Single Sign-On (SSO) choose app type

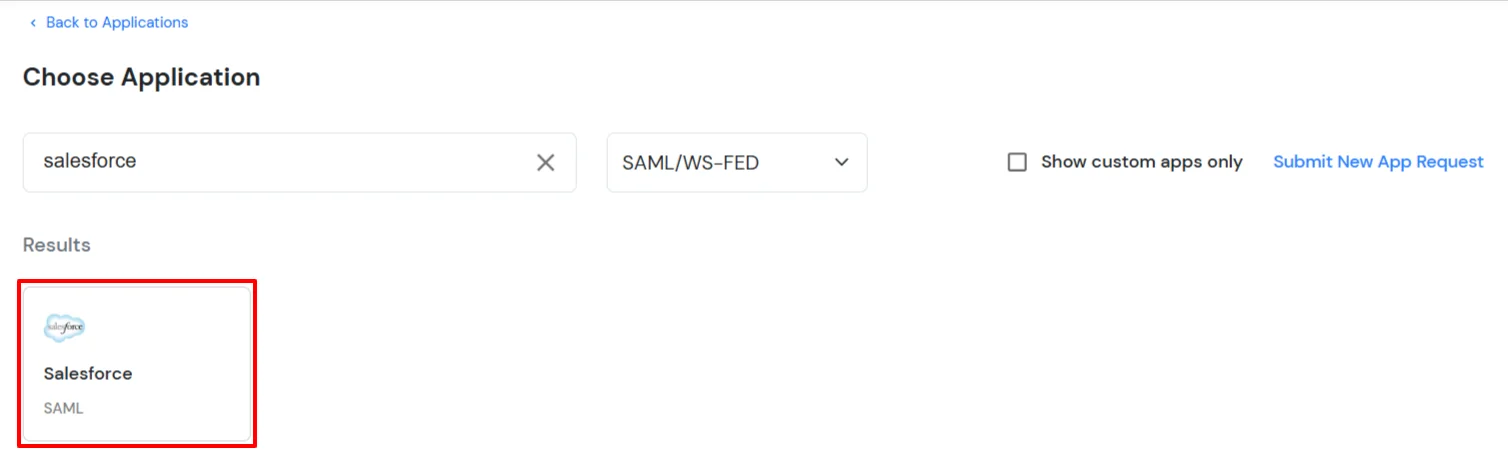

Search for Salesforce in the list, if you don't find Salesforce in the list then, search for custom and you can set up your application in Custom SAML App.

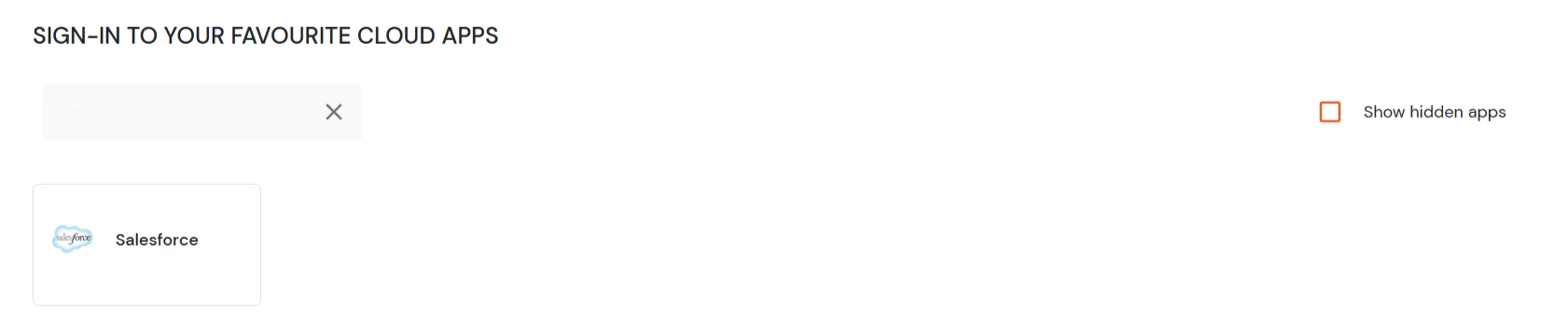

Salesforce Single Sign-On (SSO) manage apps

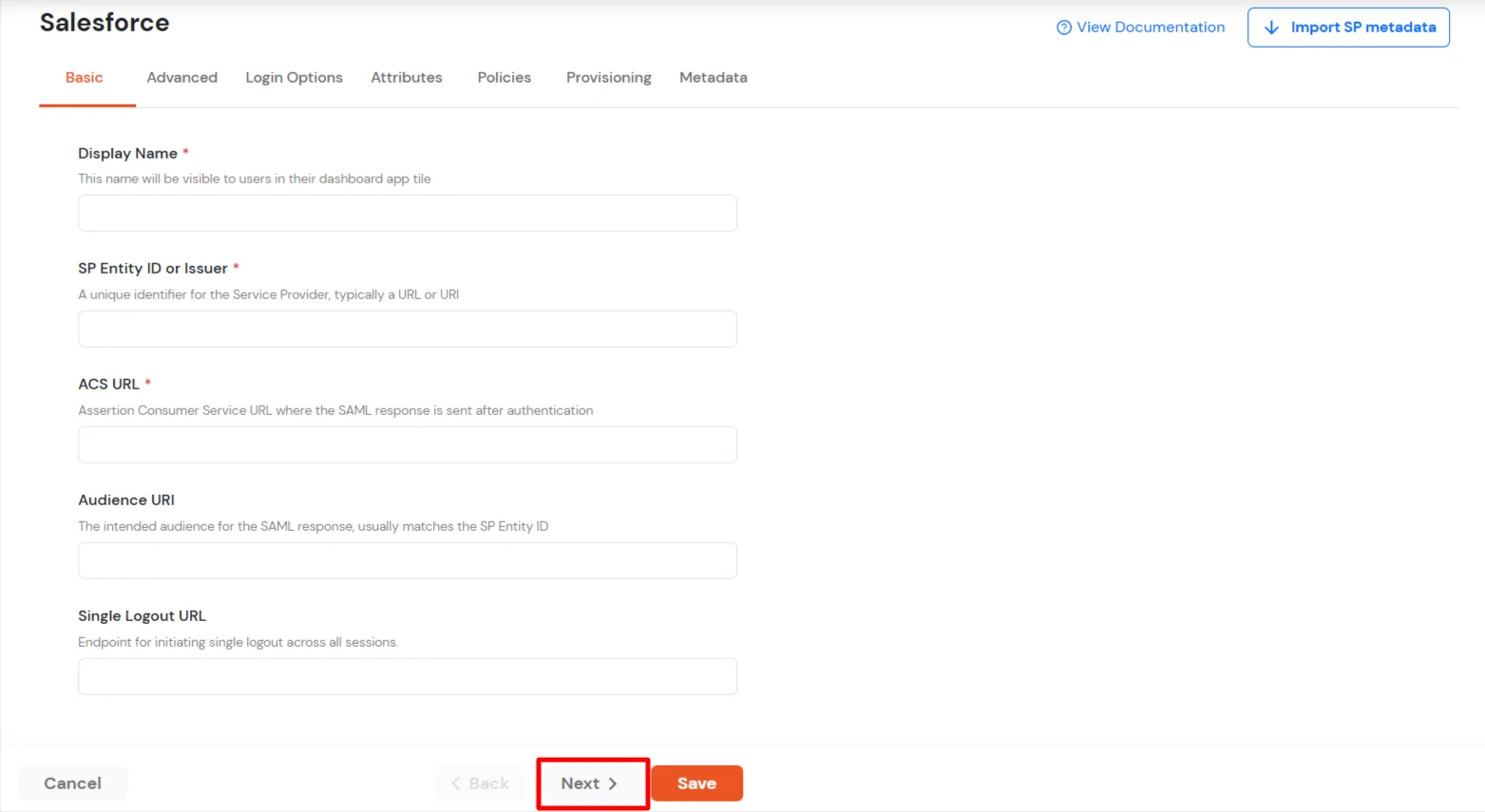

In the Basic tab, enter the following details:

Display Name: Salesforce
SP Entity ID or Issuer: https://[yourdomain].my.salesforce.com/
ACS URL: https://[yourdomain].my.salesforce.com/?so=[organization_id]
Single Logout URL: https://[yourdomain].my.salesforce.com

Salesforce SSO (Single Sign-On) add IdP basic settings

Click Next to go to the Advanced tab and enable the Sign Response option.

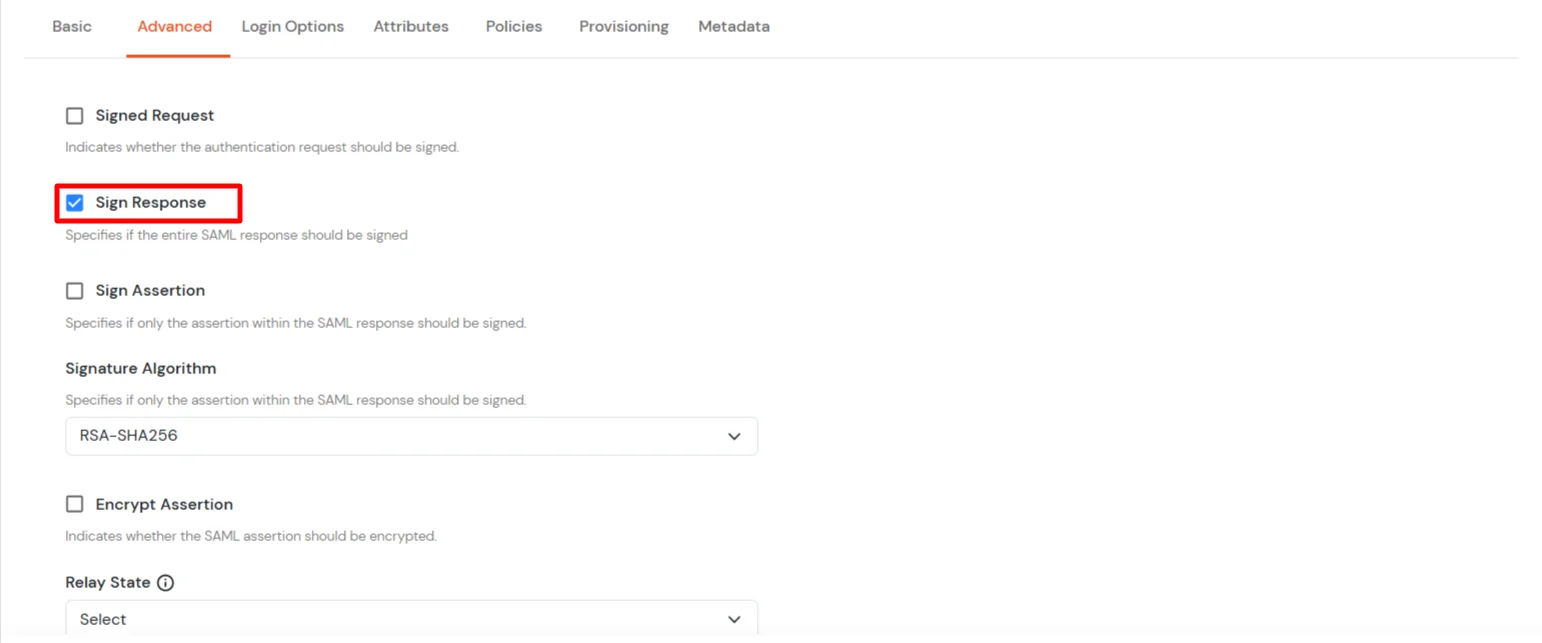

Salesforce SSO (Single Sign-On) advanced settings

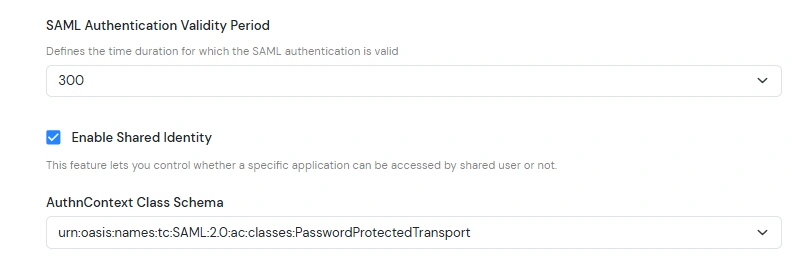

Scroll down to AuthnContext Class Schema. You can select the value of your choice, the default is PasswordProtectedTransport.

Salesforce SSO (Single Sign-On) AuthnContext Class Schema option set to PasswordProtectedTransport

Note: Salesforce prompts for MFA during SSO login. However, Salesforce trusts the following authentication methods:

MobileTwoFactorContract
PGP
Smartcard
TimeSyncToken

Selecting any of these in the dropdown will skip the MFA prompt on the Salesforce screen.

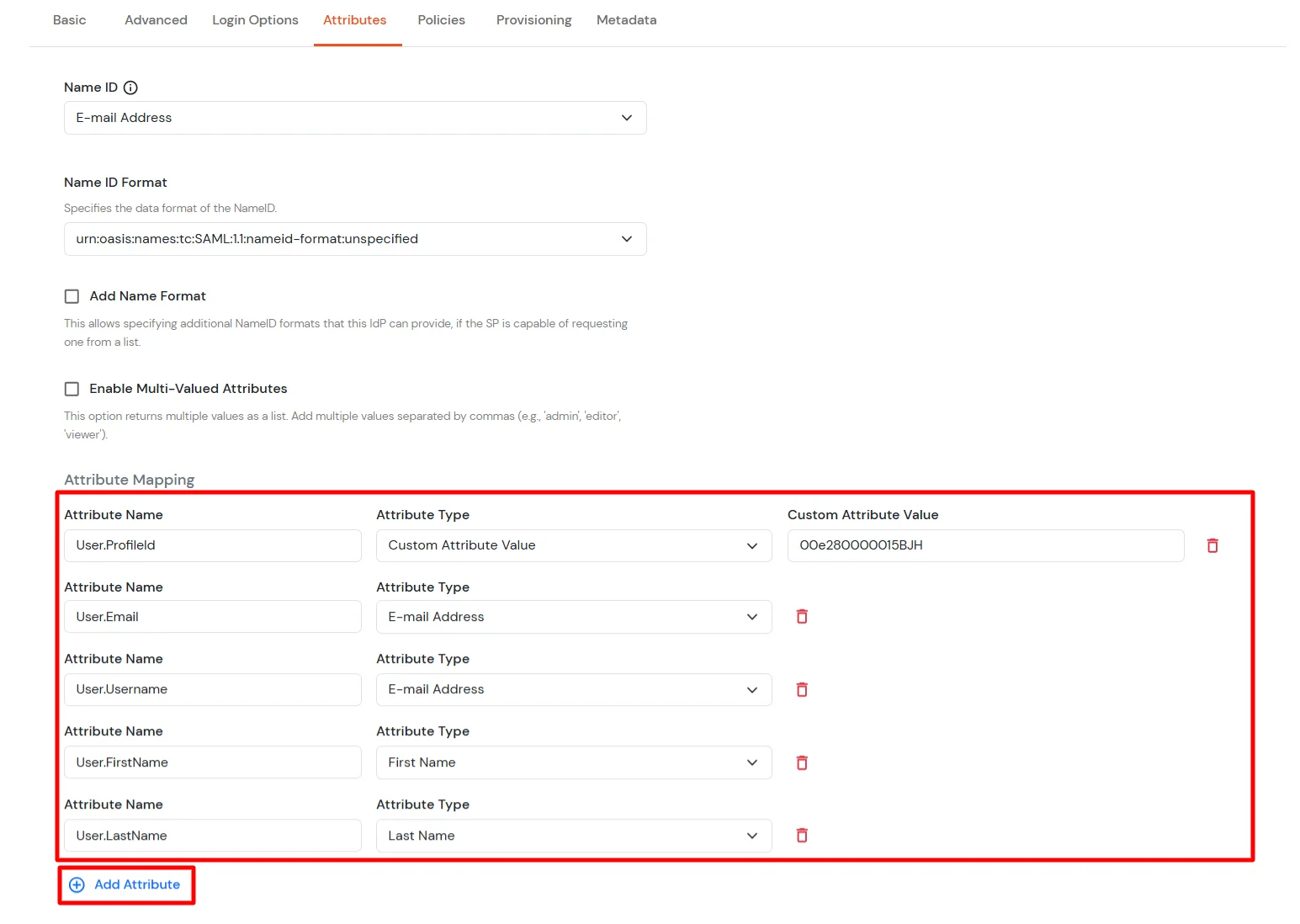

Click Next. In the Attributes tab, click Add Attribute and enter the attribute names with their values as shown below.
(Follow the steps here to find your Salesforce profileId.)

Salesforce SSO Add Attribute and save it

Click Save.
Your application is saved successfully. Now go to the Metadata tab.
On the Metadata tab, choose one of the following options:

If you want to use miniOrange as User-Store (i.e., your employee identities will be stored in miniOrange), download the metadata file under miniOrange as IdP.
If you want to authenticate via an external Identity Provider (IdP) like Active Directory, Okta, OneLogin, Google, or Apple ID, download the metadata file under External source as IdP.

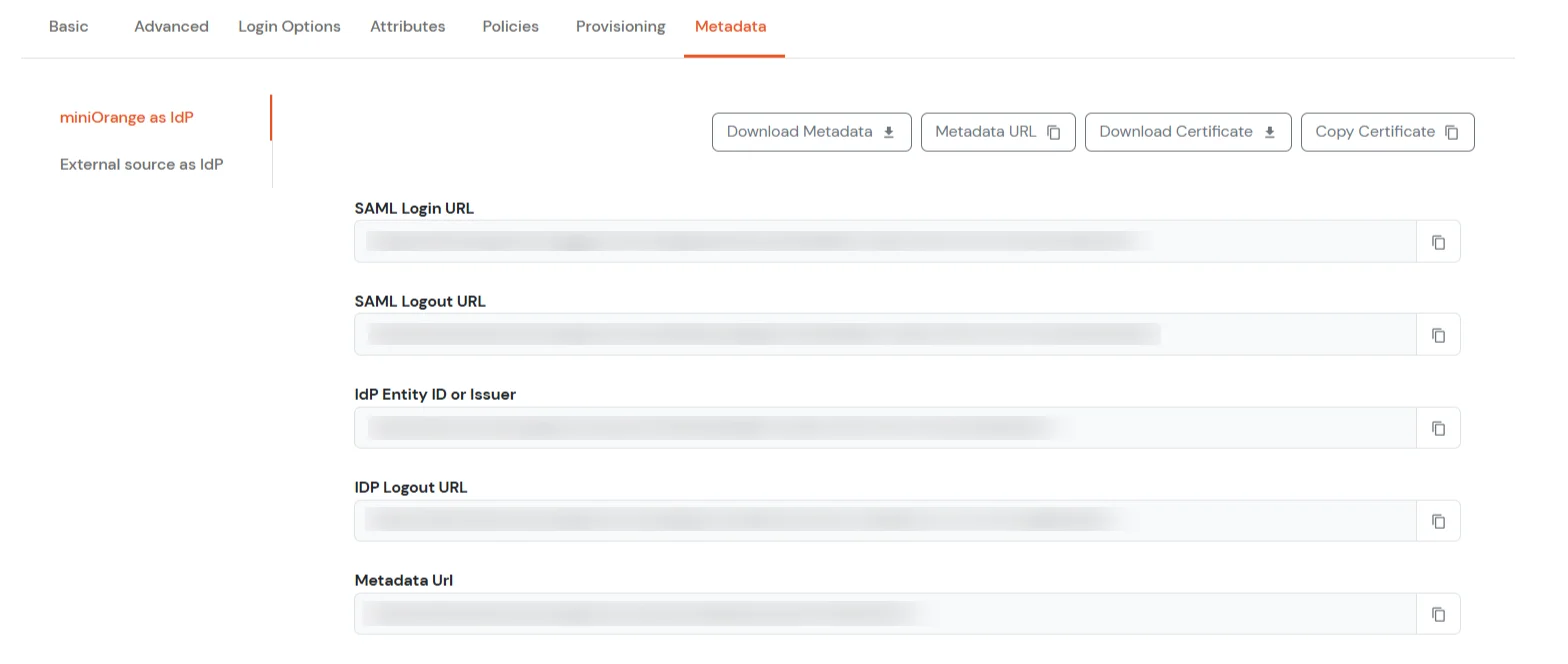

Salesforce SSO (Single Sign-On) Go to Metadata tab

Copy the SAML Login URL, SAML Logout URL, and IdP Entity ID or Issuer. Click Download Certificate to download the certificate (required in Step 2).

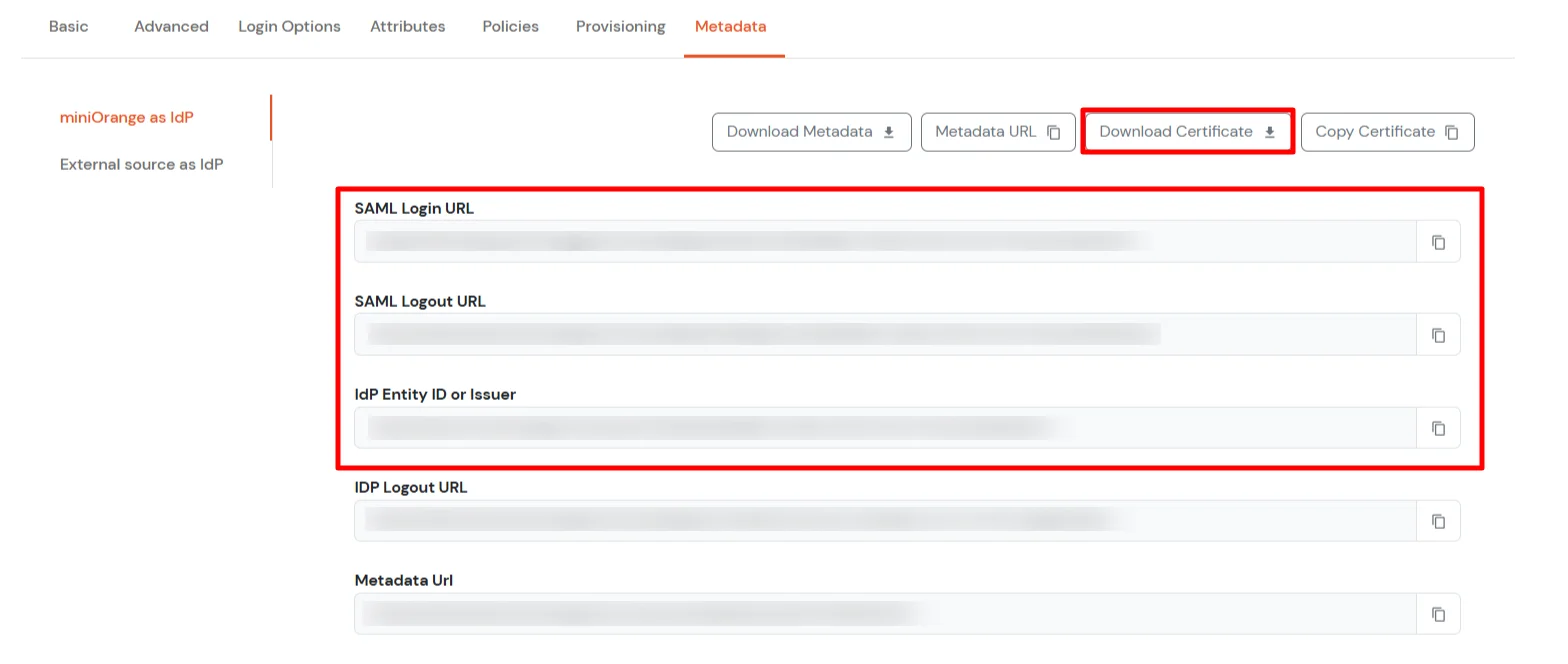

Configure Salesforce SSO: Keep IdP Metadata details

2. Configure SSO in Salesforce Admin Account

Salesforce Lightening
Salesforce Classic

Log in to your Salesforce account as Account Admin.

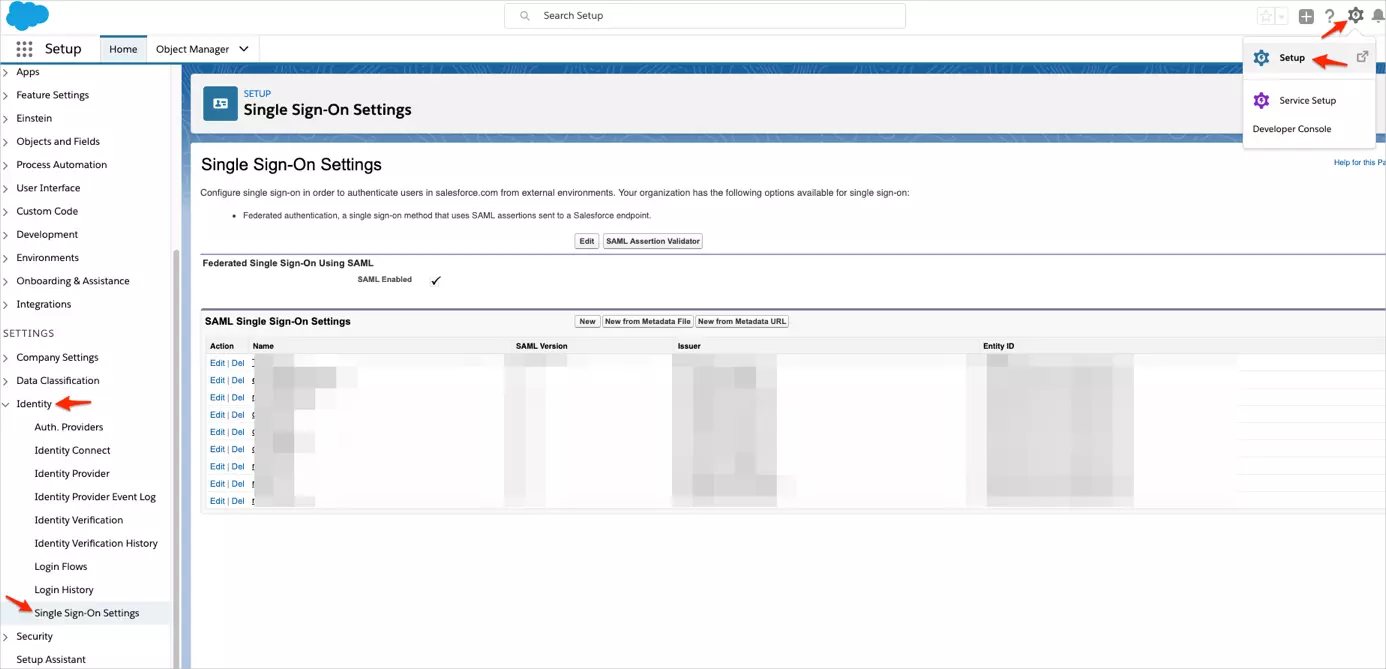

Click the gear icon, then navigate to Setup > Identity > Single Sign-On Settings.

Salesforce SSO: setup salesforce as sp-lightning

Log in to your Salesforce account as Account Admin.
Navigate to Setup > Security Controls > Single Sign-On Settings.

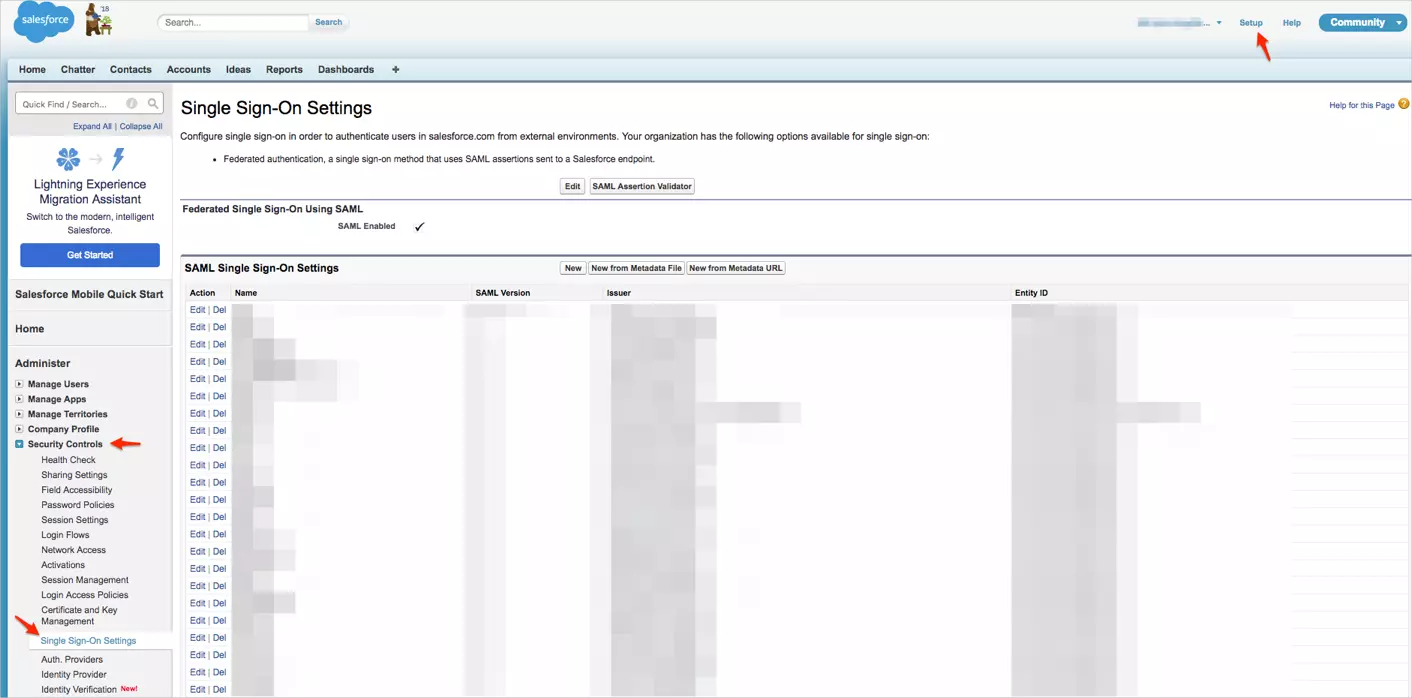

Salesforce SSO: setup salesforce as sp-classic

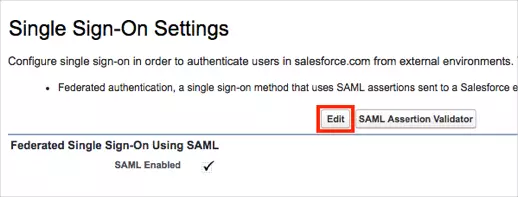

On the Single Sign-On Settings page, click on Edit.

SSO settings salesforce as sp-sso settings

Check the SAML Enabled box to enable the use of SAML Single-Sign On, then click on Save.

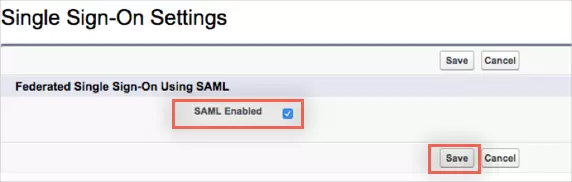

SSO settings salesforce- enable saml salesforce as sp

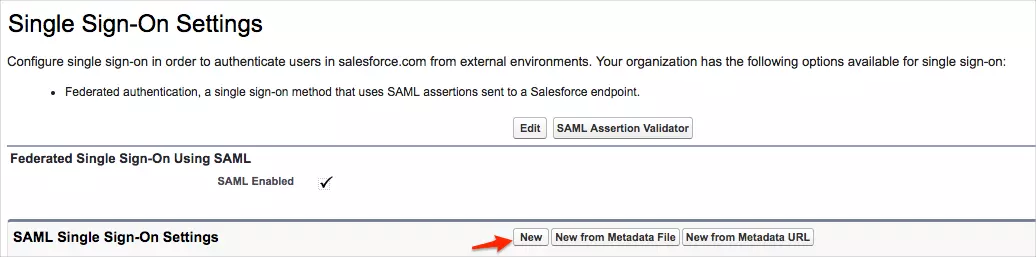

Click New to open SAML Single Sign-On Settings.

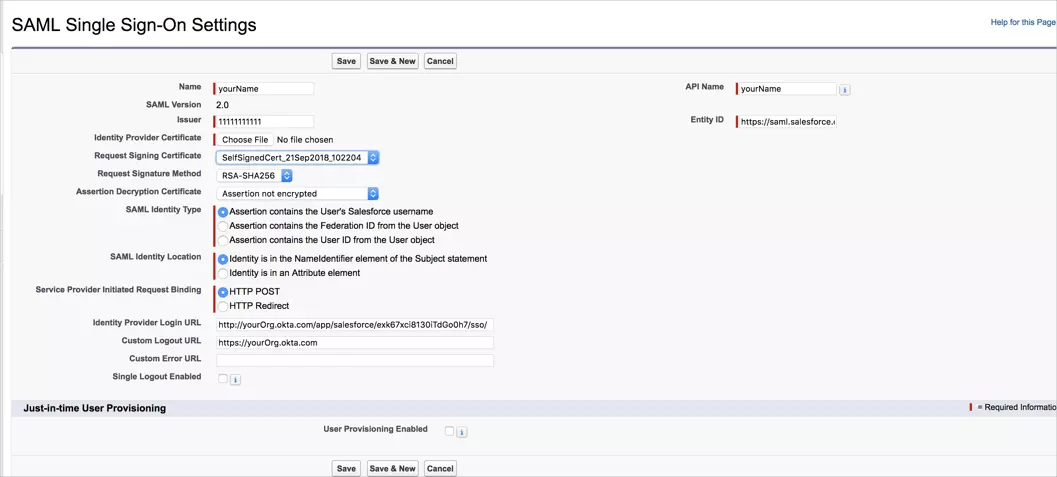

Enter the following values in the respective fields.

Issuer : IDP Entity ID/Issuer in miniorange metadata
Entity ID : https://[yourdomain].my.salesforce.com
Identity Provider Certificate : Upload Certificate from miniOrange metadata
Request Signature method : RSA-SHA256
Assertion Decryption Certificate : Not encrypted
SAML Identity Type : Assertion contains the User's Salesforce username
SAML Identity Location : Identity is in the NameIdentifier element of the Subject statement
Service Provider Initiated Request Binding : HTTP Redirect
Identity Provider Login URL : SAML Login URL in miniOrange metadata
Custom Logout URL : https://[yourdomain].my.salesforce.com

Click on Save.

Salesforce SSO: enter info sso salesforce as sp

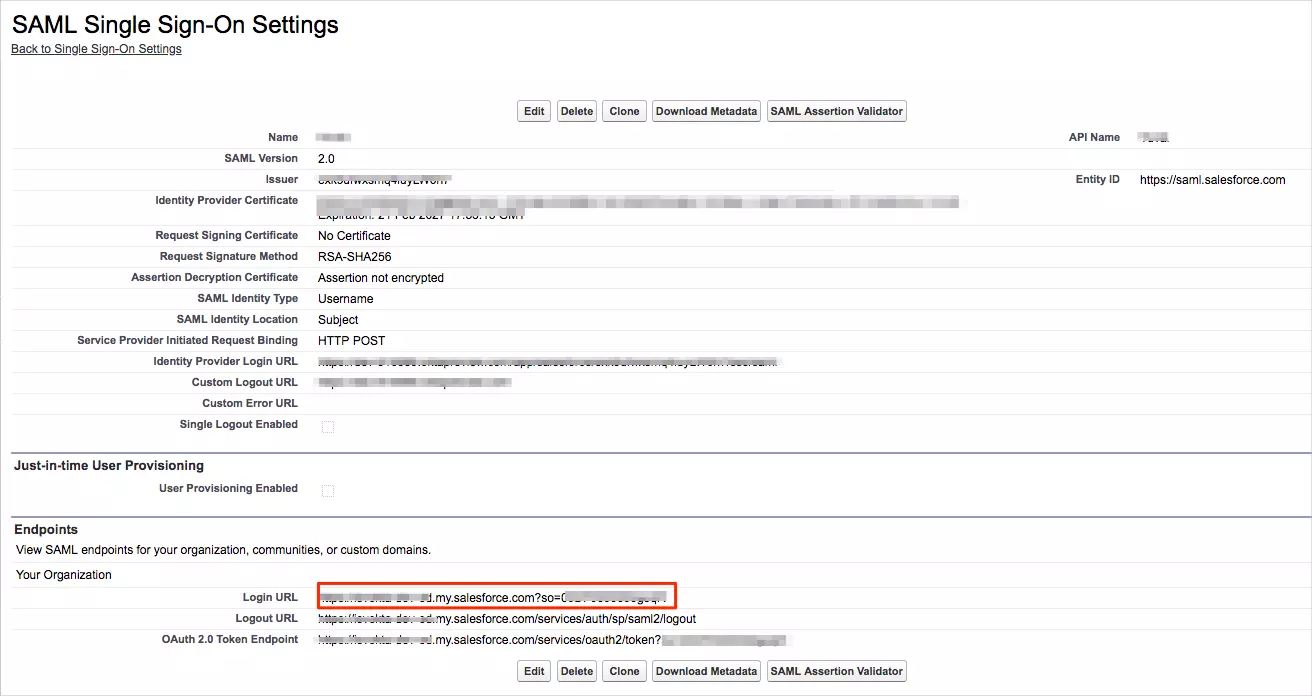

Copy your Login URL value.

Salesforce SSO: copy login url salesforce as sp

If you want to enable "Login with SSO" button on the Salesforce Lightning login page, you can follow the steps below :
- login Salesforce as an Admin > Setup.
- Navigate to "My Domain".

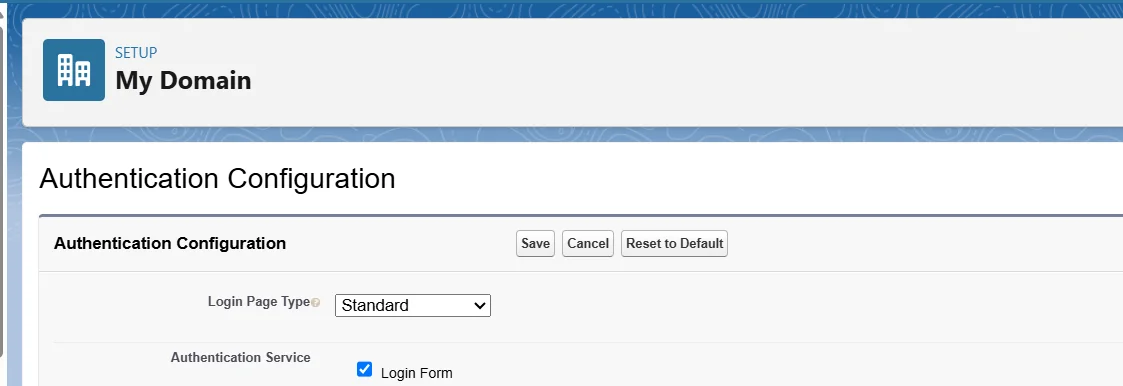

- Go to Authentication Configuration > Edit.
- Choose the IDP that you have configured > Save.
- Relogin to your Salesforce, you should be able to see the option on the login page.

3. Test SSO Configuration

Test SSO login to your Salesforce account with miniOrange IdP:

Using SP Initiated Login

Go to your Salesforce URL, here you will be either asked to enter the username or click on the SSO link which will redirect you to miniOrange IdP Sign On Page.

Enter your miniOrange login credential and click on Login. You will be automatically logged in to your Salesforce account.

Using IDP Initiated Login

On the Dashboard, click on Salesforce application which you have added, to verify SSO configuration.

Not able to configure or test SSO?

Contact us or email us at idpsupport@xecurify.com and we'll help you setting it up in no time.

Troubleshooting

How to identify errors in SAML assertions sent by your IDP?

Use the SAML Assertion Validator to troubleshoot single sign-on (SSO) login problems and identify errors in SAML assertions sent by your identity provider. Click on this link know more about the error identification in SAML Assertions.

How can I trace and export the SAML tracer logs?

Install SAML Tracer on your preferred browser:

For Firefox: Add SAML tracer Add-On from the Firefox marketplace.

For Chrome / Edge or Chromium-based browsers: Install the SAML tracer extension from Chrome Webstore.
Steps to Capture logs:
- Make sure the SAML Tracer window is opened before you start the SSO flow. (You can open it by clicking the SAML Tracer icon in your extensions list in the browser toolbar.)
- Run the SSO flow to reproduce the issue. You will see SAML Tracer getting populated with all the URLs.
- Hit Pause on SAML Tracer, once the issue is reproduced to avoid extra logs.

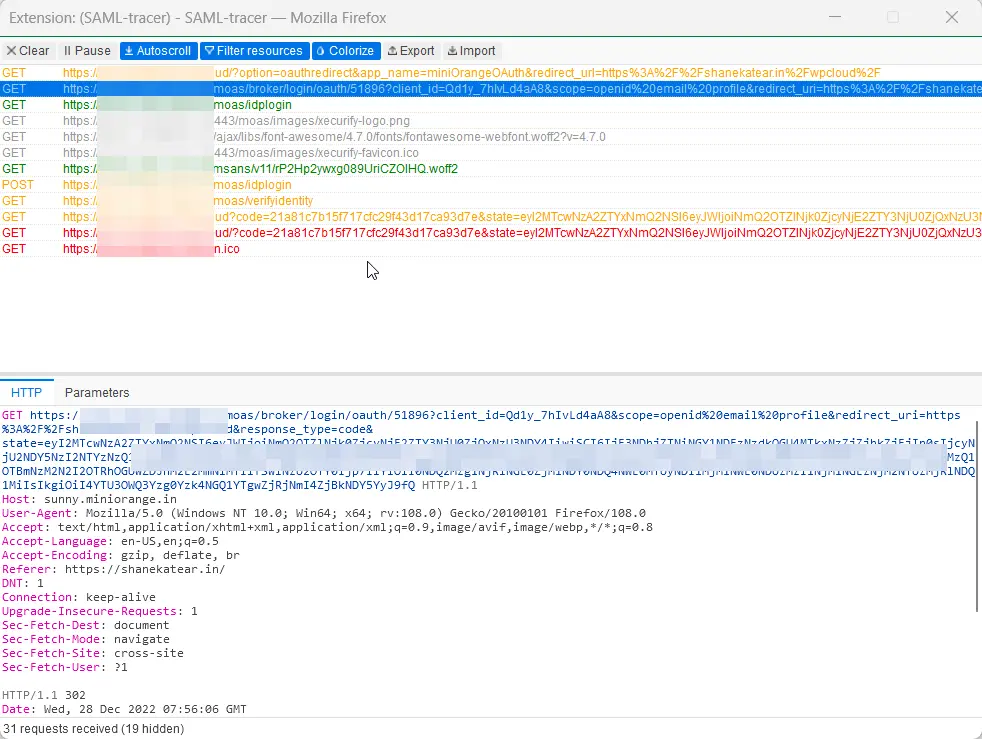

- You will have something similar to the below pic in the SAML tracer.
Steps to export logs:

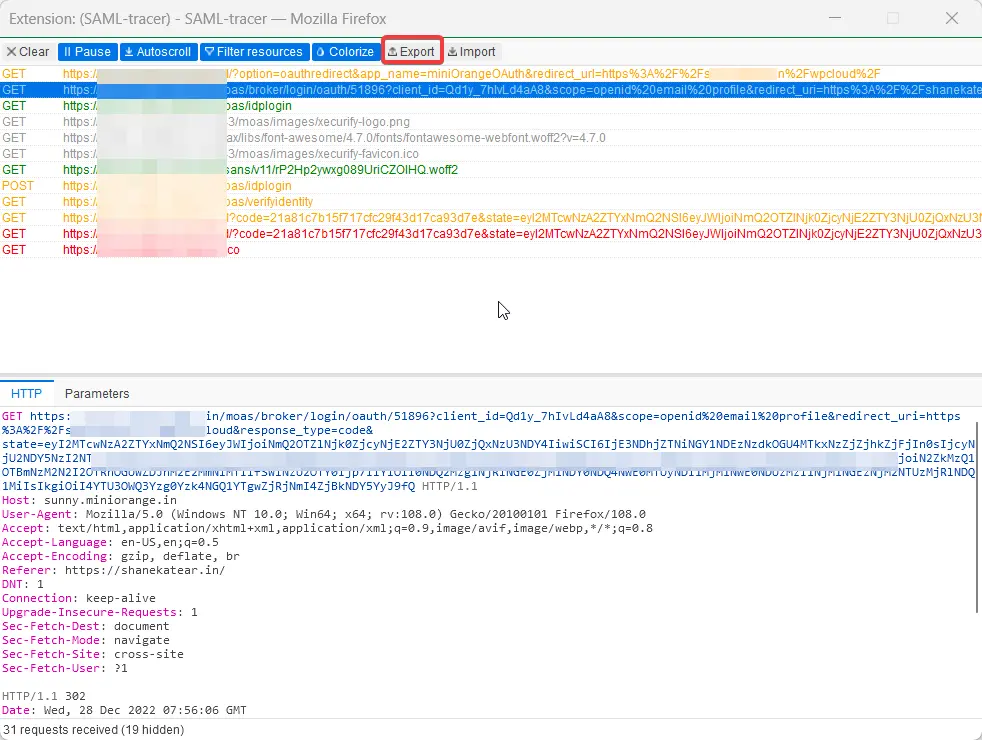

- To export logs, click the export option on the top of the SAML Tracer. (Refer to screenshot below).

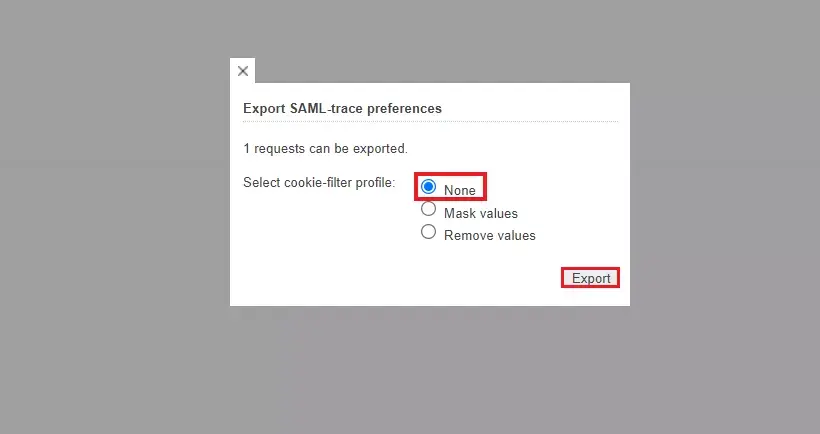

- You will be prompted with the Export SAML trace preferences window, select the None field, and then click on the Export option. (This option will allow keeping values in the original state which is required to further investigate the issue.)
- Click Export. This will download a JSON file on your system.
- Send the log file to the developer you are in touch with or at idpsupport@xecurify.com. Also, please attach an error screenshot. This would help us debug the issue.
- If you are still not able to get the logs, feel free to let us know.

FAQs

What support is available for customers during Salesforce SSO setup?

miniOrange provides expert consultation, email support, and guides to help ensure you have a seamless Salesforce SSO configuration experience.

Can Salesforce contacts, accounts, and custom objects be used as an identity source for Salesforce SSO?

Yes, Salesforce contacts, accounts, and custom objects can be used as an identity source for Salesforce SSO, as long as they contain unique identity attributes such as an email or username that can be mapped during authentication.
