Configure Discord as OAuth IDP for SSO

---

miniOrange Identity Broker service solution enables cross protocol authentication. You can configure Discord as an IDP for Single Sign-On (SSO) into your applications/websites. Here, Discord will act as an Identity Provider (IDP) and miniOrange will act as a broker.

We offer a pre-built solution for integrating with Discord, making it easier and quick to implement. Our team can also help you set up Discord as OIDC IDP to login into your applications.

Follow the Step-by-Step Guide given below for Discord Single Sign-On (SSO)

1. Configure miniOrange as Service Provider (SP) in Discord

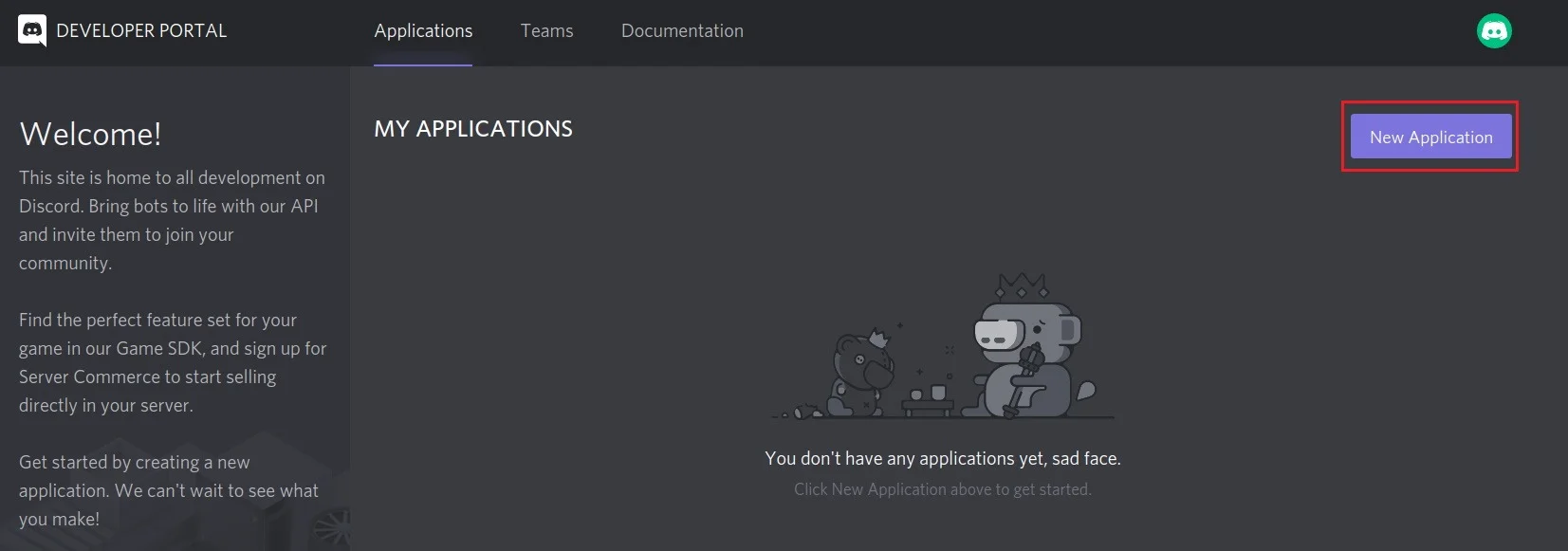

• Log in to Discord Console & click on New Application



• After clicking on the New Application button on Discord portal it will show you the popup for providing a name to the application. Click on the Create button after providing the application name.

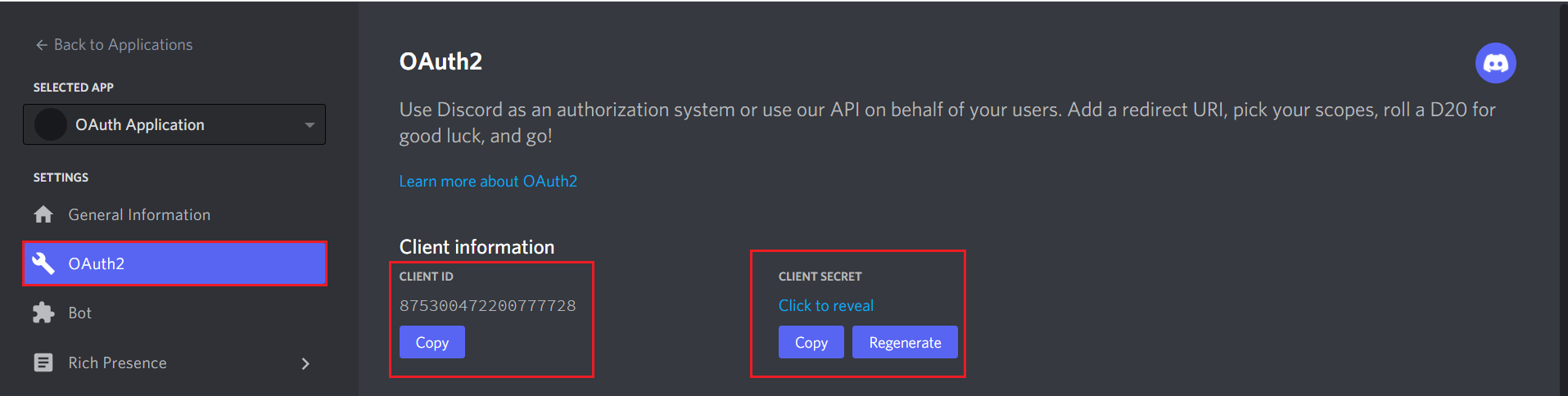

• Navigate to the Oauth2 section. Copy Client ID & Client Secret from Discord console.



• To get the Redirect URL:
• Go to miniOrange Admin Console.
• From the left navigation bar select Identity Provider.



• Copy the Callback URL as Redirect URL required for next step.

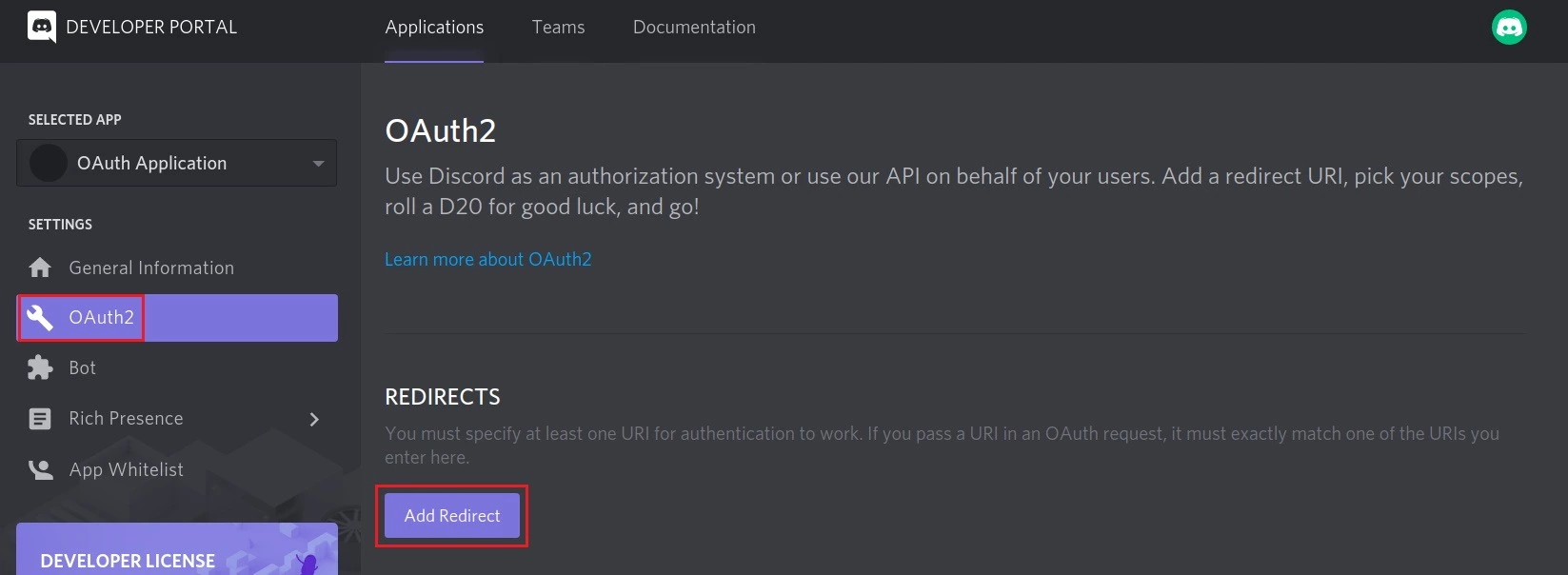

• Back in the Discord dashboard, navigate to the OAuth2 section & Add Redirect button for adding the callback URL and click on the Save button.

2. Configure Discord as OAuth 2.0 Provider in miniOrange.

• Go to miniOrange Admin Console.
• From the left navigation bar select Identity Providers >> Add Identity Provider. Select OAuth 2.0.





• Enter the following values.

IdP Name	Custom Provider
IdP Display Name	Choose appropriate Name
OAuth Authorize Endpoint	https://discordapp.com/api/oauth2/authorize
OAuth Access Token Endpoint	https://discordapp.com/api/oauth2/token
OAuth Get User Info Endpoint (optional)	https://discordapp.com/api/users/@me
Client ID	From step 1
Client secret	From step 1
Scope	identify email

3. Test Connection

• Visit your Login Page URL.
• Go to Identity Providers tab.
• Search for your app, click the three dots in the Actions menu, and select Test Connection against the Identity Provider (IDP) you configured.



• On entering valid Discord credentials (credentials of user assigned to app created in Discord), you will see a pop-up window which is shown in the below screen.



• Hence your configuration of Discord as IDP in miniOrange is successfully completed.

Configure Attribute Mapping

• Go to Identity Providers.
• Click the three dots in the Actions menu, and select Attribute Mapping against the Identity Provider (IDP) you configured.

• Attribute Type - USER
• Attribute Type - EXTERNAL

Maps information, such as email and username, during Just-In-Time (JIT) user creation. Email and Username attributes are necessary to create the user profile.

• Click on the + Add Attribute button to add the attribute fields.



• Check the attributes in the Test Connection window from the previous step. Choose any attribute names you want to send to your application under Attribute Name sent to SP.
• Enter the values of the attributes coming from IdP into the Attribute Name from IdP field on the Xecurify side.

EXTERNAL mappings help alter incoming attribute names before sending them to apps, ensuring that the data is in the correct format.

• Click on the + Add Attribute button to add the attribute fields.



• Check attributes in test connection window from last step. Enter the attribute names (any name) that you want to send to your application under Attribute Name sent to SP.
• Enter the value of attributes that are coming from IdP into the Attribute Name from IdP field on the Xecurify side.
