How to configure Proxy Settings for Secure Network Monitoring using miniOrange DLP

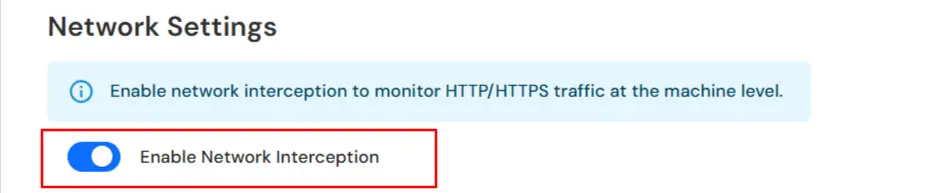

Configuring proxy settings is a critical step in securing your network against data exfiltration threats. With miniOrange Data Loss Prevention (DLP), you can activate local proxy monitoring to intercept and inspect HTTP/HTTPS traffic effectively. This step-by-step guide walks you through the complete process of setting up the DLP agent’s proxy configuration—including enabling interception, defining override URLs, setting up upstream proxies, and securing agent settings to prevent unauthorized changes. Follow these instructions to ensure comprehensive protection against data leakage through web traffic.

Prerequisites

There are a couple of things you need to check before you start with the setup:

  • You need Administrator privileges to log in to the miniOrange DLP Admin Dashboard.

Step 1: Configuring Agent Proxy Settings

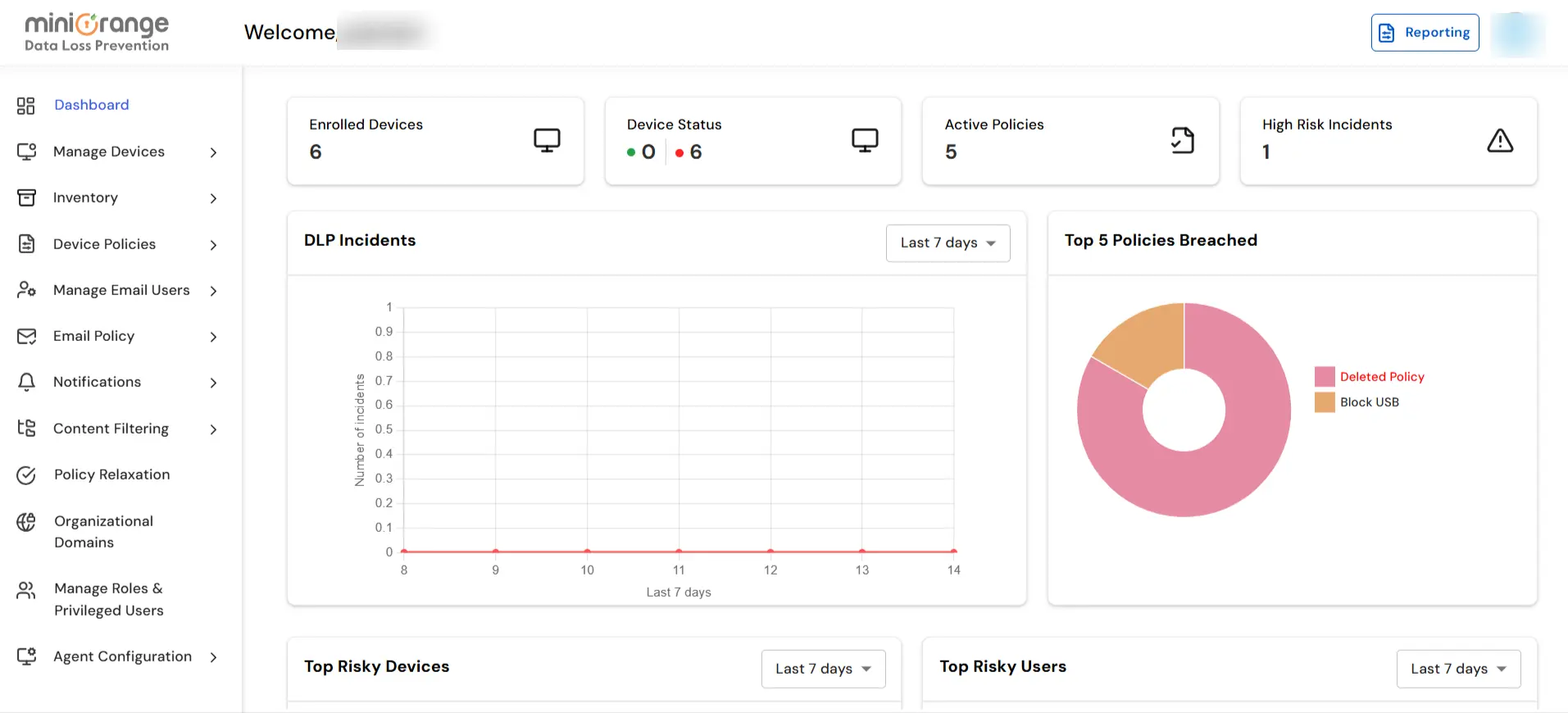

  • Sign in to your DLP Admin dashboard.

    • miniOrange DLP Admin dashboard for proxy settings and agent network interception configuration

  • Navigate to Windows Tab → Agent Configuration tab.

    • miniOrange DLP Windows Agent Configuration tab for proxy and network settings

Step 2: Set Local Proxy

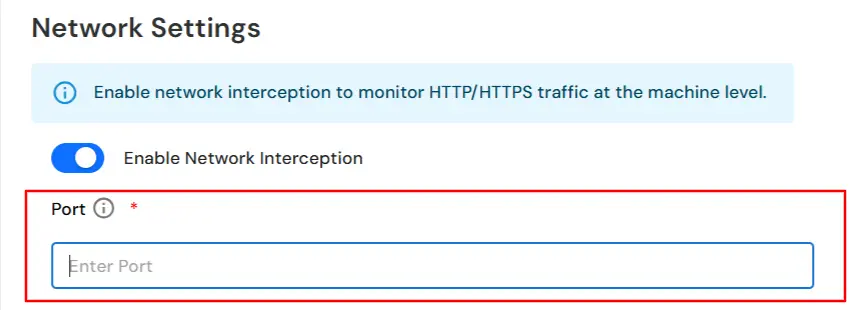

  • First provide a name for the Network Configuration. Then in the Port field, specify the port number for the local proxy server to listen on. Example: 3128 or 8080

    • miniOrange DLP Network Configuration name and port for local proxy HTTP HTTPS interception

  • Ensure this port is not blocked by the OS or antivirus and is open for localhost communication.

Step 3: Exclude Host URls

  • In the Exclude Host URLs field, enter semicolon-separated URLs or domains that should bypass interception.

    • Example: intranet.company.local, *.trusted.com


    miniOrange DLP Exclude Host URLs to bypass proxy interception for intranet and trusted domains

  • These can include Internal applications, Intranet resources, Websites that should not be inspected due to compatibility or performance issues.

Step 4: Configure Upstream Proxy (Optional)

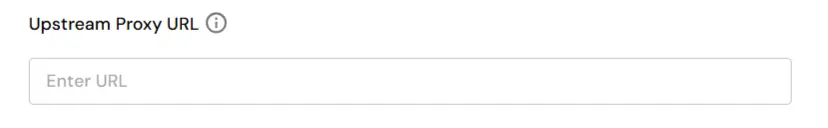

  • If your network already uses an upstream proxy (e.g., for internet access), specify its URL in the Upstream Proxy URL field.

    • Example: http://proxy.corporate.com:8080


    miniOrange DLP Upstream Proxy URL for forwarding intercepted traffic to corporate proxy

  • The local proxy will forward all intercepted traffic to this proxy.

Step 5: Restrict User Access to Proxy Settings amd set Priority

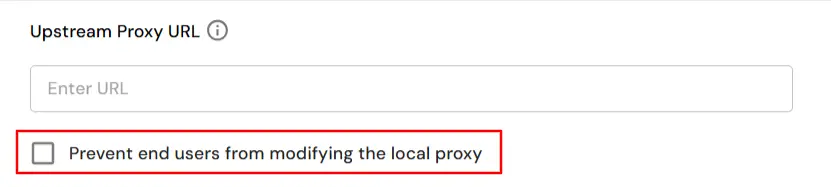

  • Set the Priority for the network configuration. Then enable the option to Prevent end users from modifying the local proxy.

    • miniOrange DLP priority and Prevent local proxy modification for tamper-resistant agent settings

  • This ensures: Users cannot change proxy settings in Windows settings or Bypass attempts through manual proxy changes are blocked.
  • This setting enhances tamper-resistance and ensures policy enforcement.
  • Once you cofigure the proxy settings then select the Device Groups to which you want to apply this configuration.

    • miniOrange DLP Device Groups selection to apply proxy configuration to agents

Step 6: Save and Apply Configuration

  • Review all the settings and click on Save to apply the configuration.
  • The new settings will be pushed to all connected agents.

In this way you have succesfully configured the Proxy Settings by using our DLP solution. Also if you are facing any issues that you are not able to resolve please feel to reach out us uemsupport@xecurify.com
